A Planmeca PlanMill® 30 S é uma excelente escolha para as clínicas que procuram uma fresadora fiável e de qualidade elevada. Esta unidade de eixo único foi desenhada para o fabrico de restaurações dentárias, com precisão elevada, permitindo que as clínicas disponibilizem conveniência de tratamento no próprio dia.
A sua porta de entrada para a medicina de visita única
Fresagem é essencial para oferecer tratamentos de restauração numa única visita, permitindo que os médicos sirvam os seus pacientes ainda melhor.
A unidade de fresagem fácil de usar PlanMill 30 S permite-lhe uma entrada profissional no mundo da tecnologia CAD/CAM.
Com esta unidade, pode fabricar restaurações cerâmicas na clínica e colocá-las numa única visita - tal e qual como os enchimentos de compósito convencial aos quais os seus pacientes estão habituados.
Fresagem versátil
Com a Planmeca PlanMill 30 S, pode criar uma ampla gama de restaurações dentárias, tais como coroas, facetas, pontes até 6 elementos e coroas aparafusados híbridas.
Pode escolher de uma ampla gama de materiais, tais como cerâmica de vidro, materiais híbridos e zircónica, selecionando o que melhor se adequa ao seu tratamento.
Funções inteligentes para precisão elevada
O eixo rotativo da Planmeca PlanMill 30 S permite fresar os dois lados de um bloco de forma precisa, apenas com um motor de alta velocidade, demorando apenas 11 a 13 minutos por restauração.
O motor linear, caminhos da ferramenta inteligentes e estratégias de fresagem otimizadas para cada material, garantem restaurações de elevada qualidade que se adaptam de forma perfeita.
Máxima performance a um preço acessível
A Planmeca PlanMill 30 S é uma escolha acessível para uma fresagem rápida e precisa em clínica.
Para assegurar um máximo desempenho, a fresadora foi desenhada com o futuro em mente, e fabricada com componentes duráveis, para uma fresagem diária.
Com atualizações de software regulares e novas funcionalidades, terá sempre uma solução de referência em mão - agora e no futuro.
Fresagem sem esforço e com intervenção mínima
Com um computador integrado, a Planmeca PlanMill 30 S é fácil de utilizar por qualquer membro da sua equipa.
O utilizador apenas necessita de inserir o bloco do material necessário, indicado no ecrã da fresadora.
De seguida, a Planmeca PlanMill 30 S escolhe automaticamente a broca para a restauração, detetando e substituindo brocas gastas ou partidas automaticamente.
Manutenção guiada para tempo de funcionamento maximizado
A Planmeca PlanMill 30 S informa o utilizador da necessidade de manutenção - desde limpezas diárias e mudanças de água até manutenções preventivas.
O software da fresadora dentária também dá informação sobre o estado das brocas e utilização dos blocos.
Para garantia de qualidade e serviços de manutenção preventiva, a fresadora pode ser monitorizada com o software Planmeca Romexis Clinic Management.
Integração total chairside
A Planmeca PlanMill 30 S é parte integrante do sistema chairside CAD/CAM Planmeca FIT, que combina o workflow completo de restauração desde a digitalização, ao desenho do tratamento e fresagem.
Com o sistema completo, as clínicas podem fabricar restaurações de forma eficiente, numa única visita do paciente.
A fresadora dentária é integrada no software Planmeca Romexis, permitindo que as restaurações sejam fabricadas diretamente do software de desenho, evitando perdas de tempo com exportações e importações de ficheiros.
Especificações Técnicas
Dados técnicos
Voltagem 100/240 VAC
Frequência 50/60 Hz
Potência 1000 W
Peso 61 kg
Dimensões (C x A x L) 662 x 441 x 544 mm
Temperatura de armazenamento -40–70ºC
Troca de ferramenta 5 posições, automática
Rotação 100 000 rpm
Ligação de dados Cabo de rede Cat5 ou Cat6
Condições de operação
Condições de operação
5–40ºC
0–80% humidade relativa a altitude máxima de 2000 metros
Espaço mínimo
Lateral 51 mm
Traseira 25 mm
Topo 305 mm
Requisitos de ar comprimido
Pressão e fluxo:
3,5–9,0 bar (50–130 psi) constantes
Mínimo 30 l/min (2 cfm)
Pureza do ar:
Contaminantes sólidos (classe 3);
nível de filtração superior a 5 μm para sólidos
Água (classe 4);
pressão máxima no ponto de congelação +3 ºC
Conteúdo total de óleo (classe 3);
conteúdo máximo de óleo 1 mg/m3
Planmeca PlanMill 30 S
Blocos
BOB
– Burn-out block from acrylic
– For cast or pressed only
COLTENE BRILLIANT Crios
– Shock absorbing reinforced composite
– Combines the advantages of an innovative submicron hybrid composite material with those of a CAD/CAM fabrication process
– Reliable, aesthetic and fast restorations without a separate firing process
– Consistently controlled fabrication with constant thermal curing, gives the reinforced composite excellent mechanical properties
– Ideal choice for single tooth restorations, both in the anterior and the posterior region, including inlays, onlays, crowns and veneers
– Well suited for bruxism patients or implant-supported crowns
BRILLIANT Crios LT A2 14/5
BRILLIANT Crios LT A3 14/5
BRILLIANT Crios LT C2 14/5
BRILLIANT Crios HT A3 14/5
BRILLIANT Crios HT A2 14/5

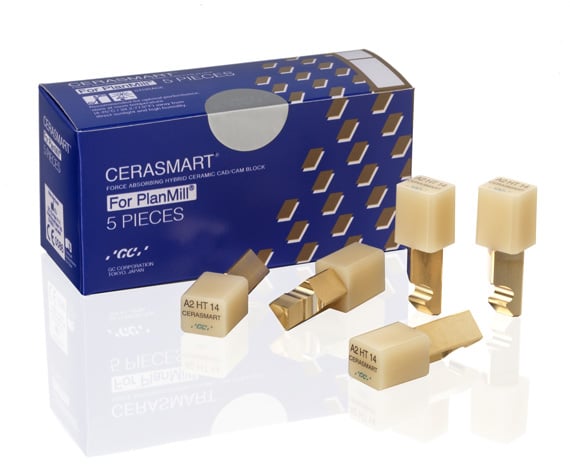

GC CERASMART
– Force absorbing hybrid ceramic material
– Combines high flexural strength and flexibility to buffer masticatory pressure
– Fast and precise milling, sharp marginal adaptation
– Ultrafine homogeneously dispersed fillers for a long-lasting polish and less wear to the opposing dentition
– Balanced fluorescence and opalescence
– High radiopacity for an easy follow-up
– Easy to use light-curing characterisation glaze
Cerasmart BL 12/5
Cerasmart BL 14/5
Cerasmart BL 14L/5
Cerasmart HT A1 14/5
Cerasmart HT A1 14L/5
Cerasmart HT A2 12/5
Cerasmart HT A2 14/5
Cerasmart HT A2 14L/5
Cerasmart HT A3 12/5
Cerasmart HT A3 14/5
Cerasmart HT A3 14L/5
Cerasmart HT A3,5 12/5
Cerasmart HT A3,5 14/5
Cerasmart HT A3,5 14L/5
Cerasmart HT AI 12/5
Cerasmart HT B1 12/5
Cerasmart HT B1 14/5
Cerasmart HT B1 14L/5
Cerasmart LT A1 12/5
Cerasmart LT A1 14/5
Cerasmart LT A1 14L/5
Cerasmart LT A2 12/5
Cerasmart LT A2 14/5
Cerasmart LT A2 14L/5
Cerasmart LT A3 12/5
Cerasmart LT A3 14/5
Cerasmart LT A3 14L/5
Cerasmart LT A3,5 12/5
Cerasmart LT A3,5 14/5
Cerasmart LT A3,5 14L/5
Cerasmart LT B1 12/5
Cerasmart LT B1 14/5
Cerasmart LT B1 14L/5

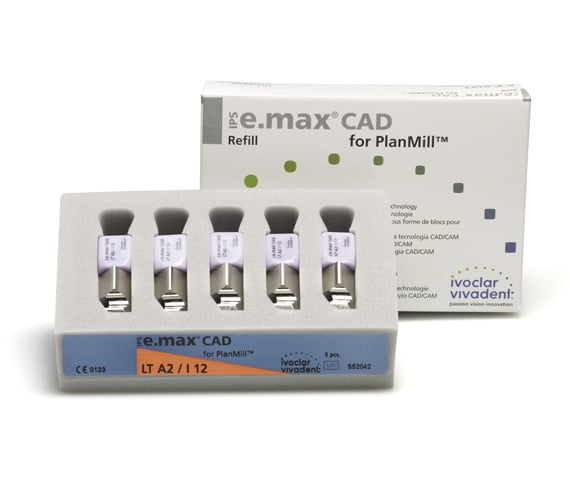

IPS e.max CAD
– High-strength lithium disilicate glass-ceramic (LS2) featuring a flexural strength of 360 MPa
– Excellent aesthetics and optional customisation
– Comprehensive indication range
– Extensive clinical evidence from long-term scientific studies
– Fast and efficient processing
– Clinically proven and versatile cementation options
– Recommended indications: Thin veneers (0.4 mm), Veneers, Occlusal veneers, Inlays, Onlays, Crowns, Three-unit bridges (up to the second premolar as the terminal abutment)
IPS e.max CAD HT A1 C14/5
IPS e.max CAD HT A1 I12/5
IPS e.max CAD HT A2 C14/5
IPS e.max CAD HT A2 I12/5
IPS e.max CAD HT A3 C14/5
IPS e.max CAD HT A3 I12/5
IPS e.max CAD HT A3,5 C14/5
IPS e.max CAD HT A3,5 I12/5
IPS e.max CAD HT A4 C14/5
IPS e.max CAD HT A4 I12/5
IPS e.max CAD HT B1 C14/5
IPS e.max CAD HT B1 I12/5
IPS e.max CAD HT B2 C14/5
IPS e.max CAD HT B2 I12/5
IPS e.max CAD HT B3 C14/5
IPS e.max CAD HT B3 I12/5
IPS e.max CAD HT B4 C14/5
IPS e.max CAD HT B4 I12/5
IPS e.max CAD HT BL1 C14/5
IPS e.max CAD HT BL1 I12/5
IPS e.max CAD HT BL2 C14/5
IPS e.max CAD HT BL2 I12/5
IPS e.max CAD HT BL3 C14/5
IPS e.max CAD HT BL3 I12/5
IPS e.max CAD HT BL4 C14/5
IPS e.max CAD HT BL4 I12/5
IPS e.max CAD HT C1 C14/5
IPS e.max CAD HT C1 I12/5
IPS e.max CAD HT C2 C14/5
IPS e.max CAD HT C2 I12/5
IPS e.max CAD HT C3 C14/5
IPS e.max CAD HT C3 I12/5
IPS e.max CAD HT C4 C14/5
IPS e.max CAD HT C4 I12/5
IPS e.max CAD HT D2 C14/5
IPS e.max CAD HT D2 I12/5
IPS e.max CAD HT D3 C14/5
IPS e.max CAD HT D3 I12/5
IPS e.max CAD HT D4 C14/5
IPS e.max CAD HT D4 I12/5
IPS e.max CAD Imp Starter C14/5
IPS e.max CAD Impulse O1 C14/5
IPS e.max CAD Impulse O2 C14/5
IPS e.max CAD Impulse V1 C14/5
IPS e.max CAD Impulse V2 C14/5
IPS e.max CAD Impulse V3 C14/5
IPS e.max CAD LT A1 B32/3
IPS e.max CAD LT A1 C14/5
IPS e.max CAD LT A1 C16/5
IPS e.max CAD LT A1 I12/5
IPS e.max CAD LT A2 B32/3
IPS e.max CAD LT A2 C14/5
IPS e.max CAD LT A2 C16/5
IPS e.max CAD LT A2 I12/5
IPS e.max CAD LT A3 B32/3
IPS e.max CAD LT A3 C14/5
IPS e.max CAD LT A3 C16/5
IPS e.max CAD LT A3 I12/5
IPS e.max CAD LT A3,5 B32/3
IPS e.max CAD LT A3,5 C14/5
IPS e.max CAD LT A3,5 C16/5
IPS e.max CAD LT A3,5 I12/5
IPS e.max CAD LT A4 C14/5
IPS e.max CAD LT A4 I12/5
IPS e.max CAD LT B1 B32/3
IPS e.max CAD LT B1 C14/5
IPS e.max CAD LT B1 C16/5
IPS e.max CAD LT B1 I12/5
IPS e.max CAD LT B2 B32/3
IPS e.max CAD LT B2 C14/5
IPS e.max CAD LT B2 C16/5
IPS e.max CAD LT B2 I12/5
IPS e.max CAD LT B3 C14/5
IPS e.max CAD LT B3 I12/5
IPS e.max CAD LT B4 C14/5
IPS e.max CAD LT B4 I12/5
IPS e.max CAD LT BL1 C14/5
IPS e.max CAD LT BL1 I12/5
IPS e.max CAD LT BL2 B32/3
IPS e.max CAD LT BL2 C14/5
IPS e.max CAD LT BL2 C16/5
IPS e.max CAD LT BL2 I12/5
IPS e.max CAD LT BL3 C14/5
IPS e.max CAD LT BL3 I12/5
IPS e.max CAD LT BL4 C14/5
IPS e.max CAD LT BL4 I12/5
IPS e.max CAD LT C1 B32/3
IPS e.max CAD LT C1 C14/5
IPS e.max CAD LT C1 C16/5
IPS e.max CAD LT C1 I12/5
IPS e.max CAD LT C2 B32/3
IPS e.max CAD LT C2 C14/5
IPS e.max CAD LT C2 C16/5
IPS e.max CAD LT C2 I12/5
IPS e.max CAD LT C3 C14/5
IPS e.max CAD LT C3 I12/5
IPS e.max CAD LT C4 C14/5
IPS e.max CAD LT C4 I12/5
IPS e.max CAD LT D2 B32/3
IPS e.max CAD LT D2 C14/5
IPS e.max CAD LT D2 C16/5
IPS e.max CAD LT D2 I12/5
IPS e.max CAD LT D3 C14/5
IPS e.max CAD LT D3 I12/5
IPS e.max CAD LT D4 C14/5
IPS e.max CAD LT D4 I12/5
IPS e.max CAD MT A1 C14/5
IPS e.max CAD MT A2 C14/5
IPS e.max CAD MT A3 C14/5
IPS e.max CAD MT B1 C14/5
IPS e.max CAD MT BL2 C14/5
IPS e.max CAD MT BL3 C14/5
IPS e.max CAD MT BL4 C14/5

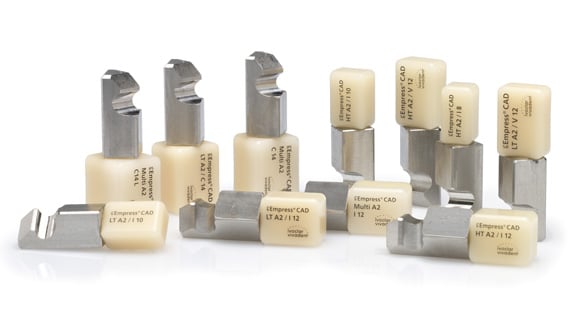

IPS Empress CAD
– Twenty years of clinical experience with more than 40 million seated restorations
– Leucite glass-ceramic (160 MPa) for exceptional aesthetics
– Comprehensive shade and size range for every patient situation
– Choice of true-to-nature chameleon effect, lifelike brightness value, or natural shade gradient
– Polishing with OptraFine – no glazing necessary
– Recommended indications: Veneers, Inlays, Onlays, Anterior crowns, Posterior crowns
IPS Empress CAD HT A1 I10/5
IPS Empress CAD HT A1 I12/5
IPS Empress CAD HT A1 I8/5
IPS Empress CAD HT A1 V12/5
IPS Empress CAD HT A2 I10/5
IPS Empress CAD HT A2 I12/5
IPS Empress CAD HT A2 I8/5
IPS Empress CAD HT A2 V12/5
IPS Empress CAD HT A3 I10/5
IPS Empress CAD HT A3 I12/5
IPS Empress CAD HT A3 I8/5
IPS Empress CAD HT A3 V12/5
IPS Empress CAD HT A3,5 I10/5
IPS Empress CAD HT A3,5 I12/5
IPS Empress CAD HT A3,5 I8/5
IPS Empress CAD HT B1 I10/5
IPS Empress CAD HT B1 I12/5
IPS Empress CAD HT B1 I8/5
IPS Empress CAD HT B2 I10/5
IPS Empress CAD HT B2 I12/5
IPS Empress CAD HT B2 I8/5
IPS Empress CAD HT B3 I10/5
IPS Empress CAD HT B3 I12/5
IPS Empress CAD HT B3 I8/5
IPS Empress CAD HT C2 I10/5
IPS Empress CAD HT C2 I12/5
IPS Empress CAD HT C2 I8/5
IPS Empress CAD HT D3 I10/5
IPS Empress CAD HT D3 I12/5
IPS Empress CAD HT D3 I8/5
IPS Empress CAD LT A1 C14/5
IPS Empress CAD LT A1 I10/5
IPS Empress CAD LT A1 I12/5
IPS Empress CAD LT A1 V12/5
IPS Empress CAD LT A2 C14/5
IPS Empress CAD LT A2 I10/5
IPS Empress CAD LT A2 I12/5
IPS Empress CAD LT A2 V12/5
IPS Empress CAD LT A3 C14/5
IPS Empress CAD LT A3 I10/5
IPS Empress CAD LT A3 I12/5
IPS Empress CAD LT A3 V12/5
IPS Empress CAD LT A3,5 C14/5
IPS Empress CAD LT A3,5 I10/5
IPS Empress CAD LT A3,5 I12/5
IPS Empress CAD LT B1 C14/5
IPS Empress CAD LT B1 I10/5
IPS Empress CAD LT B1 I12/5
IPS Empress CAD LT B2 C14/5
IPS Empress CAD LT B2 I10/5
IPS Empress CAD LT B2 I12/5
IPS Empress CAD LT B3 C14/5
IPS Empress CAD LT B3 I10/5
IPS Empress CAD LT B3 I12/5
IPS Empress CAD LT BL1 C14/5
IPS Empress CAD LT BL1 I10/5
IPS Empress CAD LT BL1 I12/5
IPS Empress CAD LT BL2 C14/5
IPS Empress CAD LT BL2 I10/5
IPS Empress CAD LT BL2 I12/5
IPS Empress CAD LT BL3 C14/5
IPS Empress CAD LT BL3 I10/5
IPS Empress CAD LT BL3 I12/5
IPS Empress CAD LT BL4 C14/5
IPS Empress CAD LT BL4 I10/5
IPS Empress CAD LT BL4 I12/5
IPS Empress CAD LT C2 C14/5
IPS Empress CAD LT C2 I10/5
IPS Empress CAD LT C2 I12/5
IPS Empress CAD LT D3 C14/5
IPS Empress CAD LT D3 I10/5
IPS Empress CAD LT D3 I12/5
IPS Empress CAD Multi
Glass-ceramic block with integrated shade gradient from the cervical to incisal area.
IPS Empress CAD Multi A1 C14 L/5
IPS Empress CAD Multi A1 C14/5
IPS Empress CAD Multi A1 I12/5
IPS Empress CAD Multi A2 C14 L/5
IPS Empress CAD Multi A2 C14/5
IPS Empress CAD Multi A2 I12/5
IPS Empress CAD Multi A3 C14 L/5
IPS Empress CAD Multi A3 C14/5
IPS Empress CAD Multi A3 I12/5
IPS Empress CAD Multi A3,5 C14 L/5
IPS Empress CAD Multi A3,5 C14/5
IPS Empress CAD Multi A3,5 I12/5
IPS Empress CAD Multi B1 C14 L/5
IPS Empress CAD Multi B1 C14/5
IPS Empress CAD Multi B1 I12/5
IPS Empress CAD Multi BL1 C14/5
IPS Empress CAD Multi BL1 C14L/5
IPS Empress CAD Multi BL1 I12/5
IPS Empress CAD Multi BL3 C14/5
IPS Empress CAD Multi BL3 C14L/5
IPS Empress CAD Multi BL3 I12/5

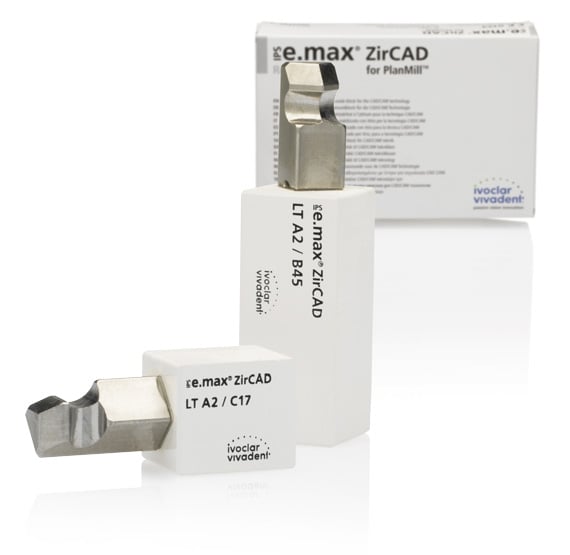

IPS e.max ZirCAD
– Preshaded monochromatic zirconium oxide block with translucency level LT
– Combination of strength and true to nature aesthetics
– High strength 1200 MPa after sintering
– Thin wall thicknesses allow to preserve tooth structures
– Conventional cementation e.g. using self-adhesive resin cement
– Recommended indications: Full-contour crowns, Three-unit bridges in the anterior/posterior region
– Available for Planmeca PlanMill 40 S, Planmeca PlanMill 40, and Planmeca PlanMill 30 S milling units
– Instructions for milling ZirCAD with Planmeca PlanMill units >
IPS e.max ZirCAD LT A1 B45/3
IPS e.max ZirCAD LT A1 C17/5
IPS e.max ZirCAD LT A2 B45/3
IPS e.max ZirCAD LT A2 C17/5
IPS e.max ZirCAD LT A3 B45/3
IPS e.max ZirCAD LT A3 C17/5
IPS e.max ZirCAD LT B1 B45/3
IPS e.max ZirCAD LT B1 C17/5
IPS e.max ZirCAD LT B2 B45/3
IPS e.max ZirCAD LT B2 C17/5
IPS e.max ZirCAD LT BL B45/3
IPS e.max ZirCAD LT BL C17/5
IPS e.max ZirCAD LT C2 B45/3
IPS e.max ZirCAD LT C2 C17/5
IPS e.max ZirCAD LT D2 B45/3
IPS e.max ZirCAD LT D2 C17/5
IPS e.max ZirCAD Multi
IPS e.max ZirCAD MT Multi block combines strength with lifelike aesthetics. The material’s special composition and natural progression of shade and translucency make the new block particularly attractive and versatile.
-The new IPS e.max ZirCAD MT Multi block combines strength with lifelike aesthetics. The material’s special composition and natural progression of shade and translucency make the new block particularly attractive and versatile
– Zirconium oxide class 4Y-TZP ensures high stability in the dentin region (850 MPa). The fracture toughness is 3.6.
– The extremely smooth progression of shade and translucency within the material consists of a 60% dentin zone, a 20% transition zone and a 20% incisal zone.- Thin wall thicknesses allow to preserve tooth structures
– Conventional cementation e.g. using self-adhesive resin cement
– Recommended indications: Full-contour crowns, Three-unit bridges in the anterior/posterior region
– Available for Planmeca PlanMill 40 S, Planmeca PlanMill 40, Planmeca PlanMill 50 S and Planmeca PlanMill 30 S milling units
Instructions for milling ZirCAD with Planmeca PlanMill units >
IPS e.max ZirCAD MT Multi BL1 C17/5
IPS e.max ZirCAD MT Multi A1 C17/5
IPS e.max ZirCAD MT Multi A2 C17/5
IPS e.max ZirCAD MT Multi A3 C17/5
IPS e.max ZirCAD MT Multi B1 C17/5
IPS e.max ZirCAD MT Multi B2 C17/5
IPS e.max ZirCAD MT Multi C2 C17/5
IPS e.max ZirCAD MT Multi D2 C17/5
IPS e.max ZirCAD MT Multi BL1 B45/3
IPS e.max ZirCAD MT Multi A1 B45/3
IPS e.max ZirCAD MT Multi A2 B45/3
IPS e.max ZirCAD MT Multi A3 B45/3
IPS e.max ZirCAD MT Multi B1 B45/3
IPS e.max ZirCAD MT Multi B2 B45/3
IPS e.max ZirCAD MT Multi C2 B45/3
IPS e.max ZirCAD MT Multi D2 B45/3

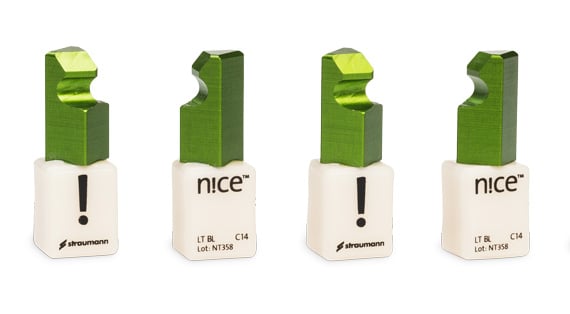

Straumann n!ce
– Fully crystallised lithium aluminosilicate ceramic reinforced with lithium disilicate
– For fast and aesthetically appealing single-tooth restorations
– Two translucency options (HT and LT) in 6 shades
– Simple polish or stain/glaze for characterisation
– Cementation using either adhesive or self-adhesive cementation
– Recommended indications: Crowns, Hybrid abutment crowns, Inlays, Onlays, Veneers
Straumann n!ce HT A2 C14/5
Straumann n!ce HT A3 C14/5
Straumann n!ce HT B2 C14/5
Straumann n!ce HT B4 C14/5
Straumann n!ce HT Bleach C14/5
Straumann n!ce LT A1 C14/5
Straumann n!ce LT A2 C14/5
Straumann n!ce LT A3 C14/5
Straumann n!ce LT B2 C14/5
Straumann n!ce LT B4 C14/5
Straumann n!ce LT Bleach C14/5

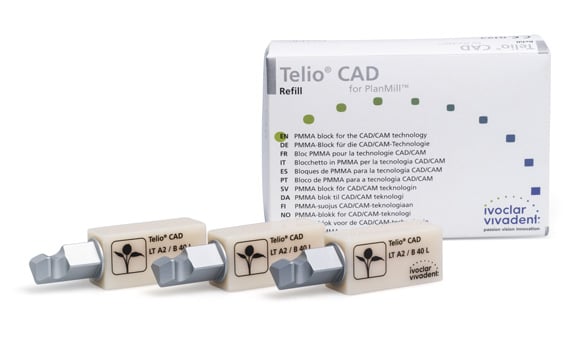

Telio CAD
– Durable shade stability and true-to-nature fluorescence
– High material homogeneity due to the industrial manufacturing process
– Easy reproducibility of temporaries
– Recommended indications: Temporary anterior crowns, Temporary posterior crowns, Temporary anterior bridges with up to two connected pontics, Temporary posterior bridges with up to two connected pontics, Implant-supported temporaries, Template for the permanent restoration, Therapeutic restoration when correcting TMJ problems and adjusting the occlusal plane
Telio CAD LT A1 B40L/3
Telio CAD LT A1 B40L/9
Telio CAD LT A1 B55/1
Telio CAD LT A1 B55/3
Telio CAD LT A2 B40L/3
Telio CAD LT A2 B40L/9
Telio CAD LT A2 B55/1
Telio CAD LT A2 B55/3
Telio CAD LT A3 B40L/3
Telio CAD LT A3 B40L/9
Telio CAD LT A3 B55/1
Telio CAD LT A3 B55/3
Telio CAD LT A3.5 B40L/3
Telio CAD LT A3.5 B40L/9
Telio CAD LT A3.5 B55/1
Telio CAD LT A3.5 B55/3
Telio CAD LT B1 B40L/3
Telio CAD LT B1 B40L/9
Telio CAD LT B1 B55/1
Telio CAD LT B1 B55/3
Telio CAD LT B3 B40L/3
Telio CAD LT B3 B40L/9
Telio CAD LT B3 B55/3
Telio CAD LT BL3 B40L/3
Telio CAD LT BL3 B40L/9
Telio CAD LT BL3 B55/1
Telio CAD LT BL3 B55/3
Telio CAD LT C2 B40L/3
Telio CAD LT C2 B40L/9
Telio CAD LT C2 B55/3
Telio CAD LT D2 B40L/3
Telio CAD LT D2 B40L/9
Telio CAD LT D2 B55/3
Tetric CAD
– Aesthetic composite blocks for single-tooth restorations
– True-to-nature integration due to a unique chameleon effect
– Easy and efficient processing
– Excellent polishability and intraoral reparability
– Stability even in limited layer thicknesses
– Recommended indications: Veneers, Inlays, Onlays (e.g. occlusal veneers, partial crowns), Crowns in the anterior and posterior region
Tetric CAD HT A1 C14/5
Tetric CAD HT A1 I12/5
Tetric CAD HT A2 C14/5
Tetric CAD HT A2 I12/5
Tetric CAD HT A3 C14/5
Tetric CAD HT A3 I12/5
Tetric CAD HT A3,5 C14/5
Tetric CAD HT A3,5 I12/5
Tetric CAD MT A1 C14/5
Tetric CAD MT A1 I12/5
Tetric CAD MT A2 C14/5
Tetric CAD MT A2 I12/5
Tetric CAD MT A3 C14/5
Tetric CAD MT A3 I12/5
Tetric CAD MT A3,5 C14/5
Tetric CAD MT A3,5 I12/5
Tetric CAD MT BL C14/5
Tetric CAD MT BL I12/5

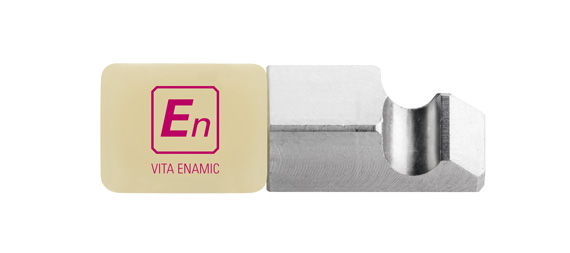

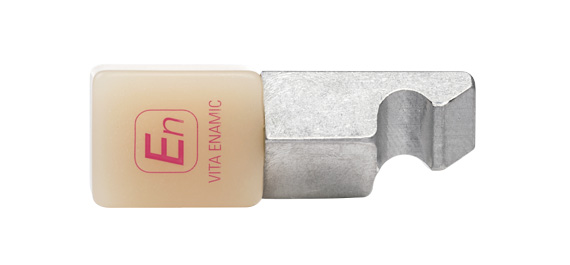

VITA ENAMIC
– Hybrid ceramic material with a dual-network structure
– Combines the positive characteristics of a ceramic and composite
– Less brittle than pure ceramic
– Better abrasion behaviour than composite
– High load capacity after adhesive bonding
– Thin walls for minimal invasive treatment
– Excellent light transmitting properties for natural aesthetics
– Recommended indications: Crowns, Implant crowns, Inlays, Onlays, Veneers, Table tops, Endo crowns
VITA ENAMIC 0M1-HT EM-14/5
VITA ENAMIC 0M1-T EM-14/5
VITA ENAMIC 1M1-HT EM-14/5
VITA ENAMIC 1M1-T EM-14/5
VITA ENAMIC 1M2-HT EM-14/5
VITA ENAMIC 1M2-T EM-14/5
VITA ENAMIC 2M2-HT EM-14/5
VITA ENAMIC 2M2-T EM-14/5
VITA ENAMIC 3M2-HT EM-14/5
VITA ENAMIC 3M2-T EM-14/5
VITA ENAMIC 4M2-T EM-14/5
VITA ENAMIC multiColor
– Hybrid ceramic block with integrated shade gradient from the cervical to incisal area
– Fast processing – restorations can be seated as soon as polishing is complete
– Enormous load capacity as masticatory forces are absorbed
– Recommended indications: Anterior crowns, Posterior/molar crowns, Implant-supported crowns, Veneers
VITA ENAMIC multiColor 1M1-HT EMC-14/5
VITA ENAMIC multiColor 1M2-HT EMC-14/5
VITA ENAMIC multiColor 2M2-HT EMC-14/5
VITA ENAMIC multiColor 3M2-HT EMC-14/5
VITA ENAMIC multiColor 4M2-HT EMC-14/5

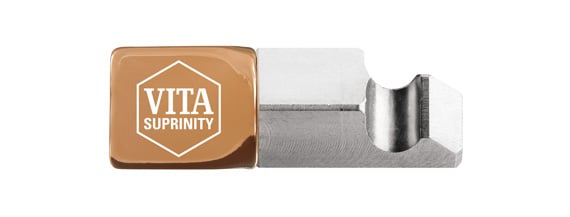

VITA SUPRINITY PC*
– Zirconia-reinforced glass ceramic matrix
– Simple processing due to good polishing characteristics and high firing stability
– Brilliant aesthetics based on integrated translucency, opalescence, and fluorescence
– Recommended indications: Posterior crowns, Anterior crowns, Implant-supported crowns, Veneers
*VITA Zahnfabrik offers VITA SUPRINITY PC since May 2016, a new generation of glass ceramic material products. The innovative glass ceramic is enriched with zirconia (approx. 10 % by weight) to offer practices and laboratories a high-strength, zirconia-reinforced lithium silicate ceramic (ZLS).
VITA SUPRINITY PC 0M1-HT PC-14/5
VITA SUPRINITY PC 0M1-T PC-14/5
VITA SUPRINITY PC A1-HT PC-14/5
VITA SUPRINITY PC A1-T PC-14/5
VITA SUPRINITY PC A2-HT PC-14/5
VITA SUPRINITY PC A2-T PC-14/5
VITA SUPRINITY PC A3-HT PC-14/5
VITA SUPRINITY PC A3-T PC-14/5
VITA SUPRINITY PC A3,5-HT PC-14/5
VITA SUPRINITY PC A3,5-T PC-14/5
VITA SUPRINITY PC B2-HT PC-14/5
VITA SUPRINITY PC B2-T PC-14/5
VITA SUPRINITY PC C2-HT PC-14/5
VITA SUPRINITY PC C2-T PC-14/5
VITA SUPRINITY PC D2-HT PC-14/5
VITA SUPRINITY PC D2-T PC-14/5

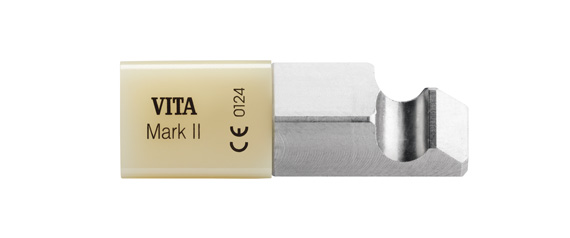

VITABLOCS Mark II
– A monochromatic tooth-coloured feldspar ceramic
– Excellent integration of the shade due to chameleon effect
– Fast processing since seating is enabled immediately after milling and polishing
– Particularly suited for aesthetic reconstructions in cases of minor defects
– Recommended indications: Inlays, Onlays, Partial crowns
VITABLOCS Mark II A1C I12/5
VITABLOCS Mark II A1C I14/5
VITABLOCS Mark II A2C I12/5
VITABLOCS Mark II A2C I14/5
VITABLOCS Mark II A3,5C I12/5
VITABLOCS Mark II A3,5C I14/5
VITABLOCS Mark II A3C I12/5
VITABLOCS Mark II A3C I14/5
VITABLOCS Mark II A4C I12/5
VITABLOCS Mark II A4C I14/5
VITABLOCS Mark II B2C I12/5
VITABLOCS Mark II B2C I14/5
VITABLOCS Mark II C2C I14/5
VITABLOCS Mark II C3C I14/5
VITABLOCS Mark II D3C I14/5
VITABLOCS Mark II 2M1 I12*

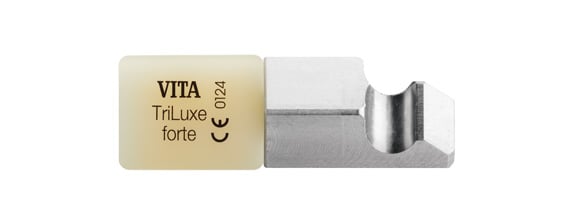

VITABLOCS TriLuxe forte
– A multichromatic feldspar ceramic with integrated tooth shade gradient
– Natural play of colour due to integrated tooth shade gradient
– Fast processing since seating is enabled immediately after milling and polishing
– Suited for highly aesthetic reconstructions in the visible region
– Recommended indications: Anterior crowns, Veneers
VITABLOCS TriLuxe forte A1C TF-14/14/5
VITABLOCS TriLuxe forte A2C TF-14/14/5
VITABLOCS TriLuxe forte A3C TF-14/14/5
VITABLOCS TriLuxe forte A3,5C TF-14/14/5

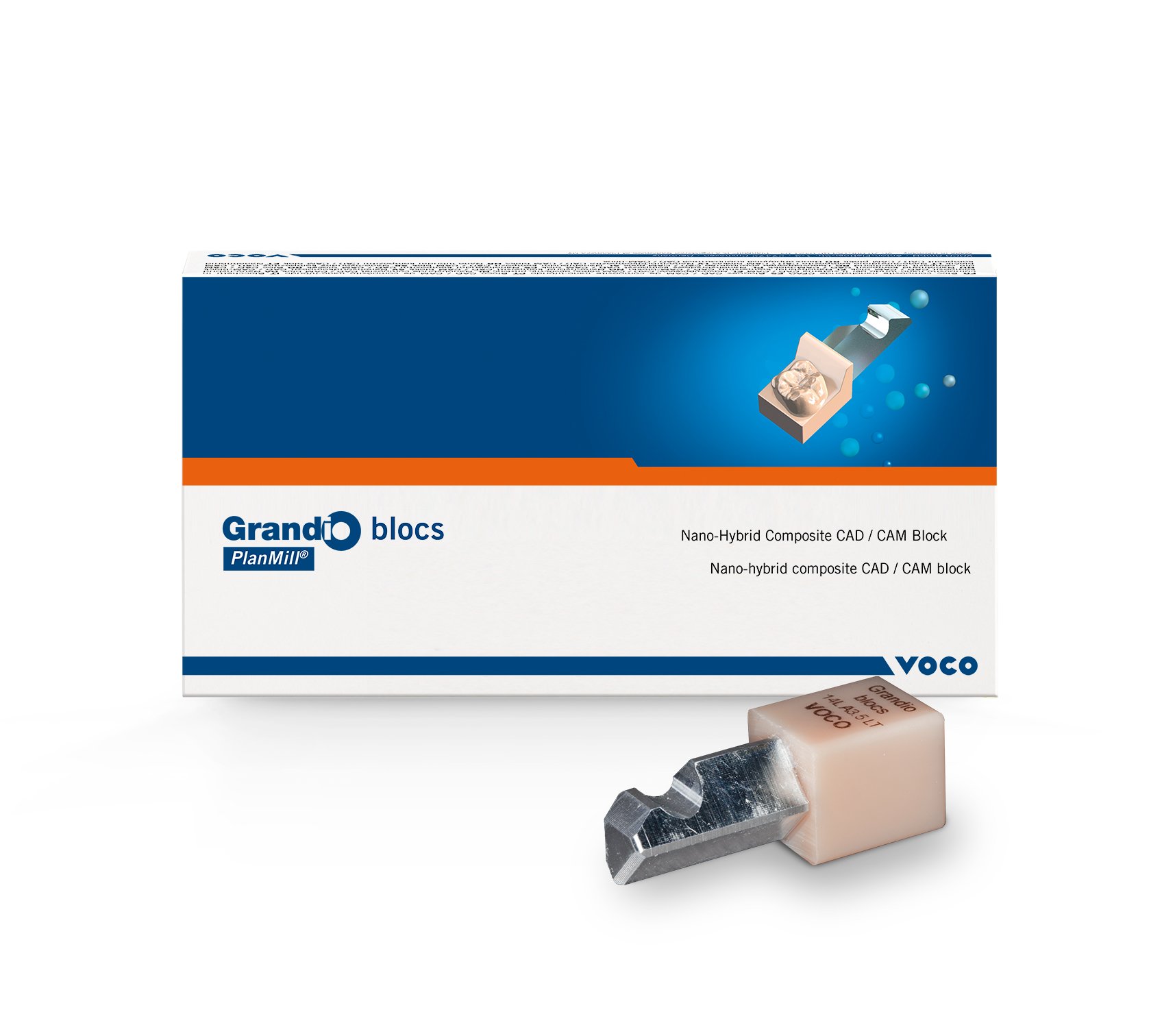

VOCO Grandio blocs
Exceptional block material providing strength for CAD/CAM restorations.
– For the fabrication of definite crowns, inlays, onlays, veneers and implant-supported crowns
– Highest filler content (86% w/w) for long-lasting and durable restorations
– Resembles natural teeth perfectly
– Excellent physical values for flexural strength and abrasion
– Optimal polishability and repair
– Based on a nano-hybrid technology
Grandio blocs A1 LT 12
Grandio blocs A1 LT 14L
Grandio blocs A2 LT 12
Grandio blocs A2 LT 14L
Grandio blocs A3 LT 12
Grandio blocs A3 LT 14L
Grandio blocs A3.5 LT 12
Grandio blocs A3.5 LT 14L
Grandio blocs B1 LT 12
Grandio blocs B1 LT 14L
Grandio blocs C2 LT 12
Grandio blocs C2 LT 14L
Grandio blocs BL LT 12
Grandio blocs BL LT 14L
Grandio blocs A1 HT 12
Grandio blocs A1 HT 14L
Grandio blocs A2 HT 12
Grandio blocs A2 HT 14L
Grandio blocs A3 HT 12
Grandio blocs A3 HT 14L
Grandio blocs A3.5 HT 12
Grandio blocs A3.5 HT 14L
Blocos de pilares
Viteo Base Ti
Titanium bonding base for single tooth restorations
– Can be used with temporary and permanent restoration materials
– Available in two sizes: small diameter (SD) and medium diameter (MD)
– The special “soft edge” design of the bonding surface is specially designed for press and CAD/CAM ceramics
– Recessed rotation protection – safe positioning and ideal support of the restoration materials
– Abutment height can be adjusted from 6mm to 4mm when a press technique is used, not in CAD/CAM workflow
– Preconditioned bonding surface – strong bond
– Compatible with Elos Accurate® scan bodies and the most common implant systems (see combination table below)

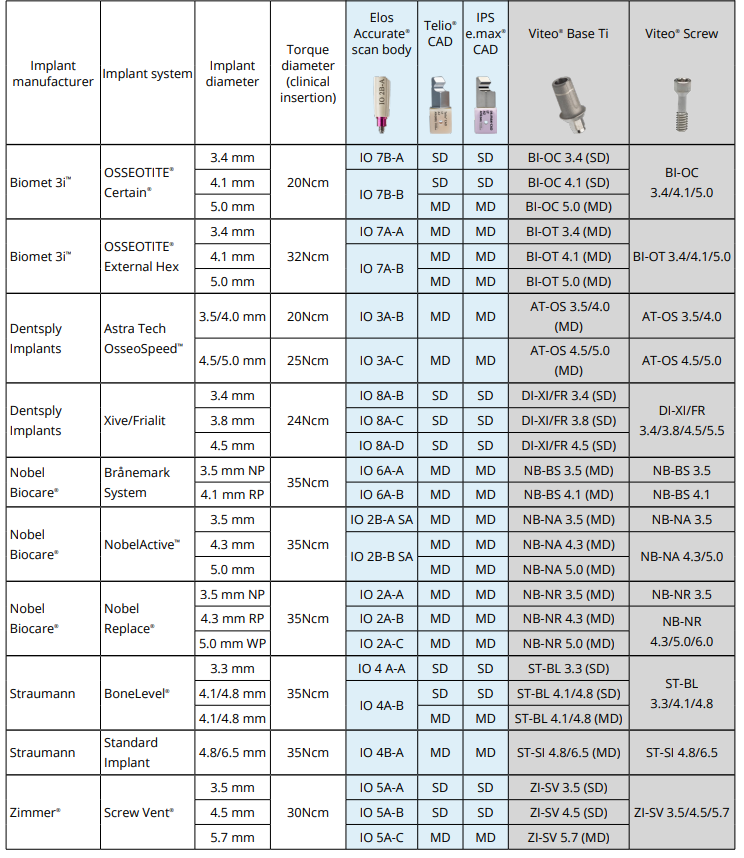

Viteo Base Ti combination table
Blocks with prefabricated interface suitable for Viteo® Base Ti
IPS e.max CAD LT BL2 A14 (SD)/5
IPS e.max CAD LT A1 A14 (SD)/5
IPS e.max CAD LT A2 A14 (SD)/5
IPS e.max CAD LT A3 A14 (SD)/5
IPS e.max CAD LT A3.5 A14(SD)/5
IPS e.max CAD LT B1 A14 (SD)/5
IPS e.max CAD LT B2 A14 (SD)/5
IPS e.max CAD LT C1 A14 (SD)/5
IPS e.max CAD LT C2 A14 (SD)/5
IPS e.max CAD LT D2 A14 (SD)/5
IPS e.max CAD LT BL2 A14 (MD)/5
IPS e.max CAD LT A1 A14 (MD)/5
IPS e.max CAD LT A2 A14 (MD)/5
IPS e.max CAD LT A3 A14 (MD)/5
IPS e.max CAD LT A3.5 A14(MD)/5
IPS e.max CAD LT B1 A14 (MD)/5
IPS e.max CAD LT B2 A14 (MD)/5
IPS e.max CAD LT C1 A14 (MD)/5
IPS e.max CAD LT C2 A14 (MD)/5
IPS e.max CAD LT D2 A14 (MD)/5
IPS e.max CAD LT BL2 A16 (SD)/5
IPS e.max CAD LT A1 A16 (SD)/5
IPS e.max CAD LT A2 A16 (SD)/5
IPS e.max CAD LT A3 A16 (SD)/5
IPS e.max CAD LT A3.5 A16(SD)/5
IPS e.max CAD LT B1 A16 (SD)/5
IPS e.max CAD LT B2 A16 (SD)/5
IPS e.max CAD LT C1 A16 (SD)/5
IPS e.max CAD LT C2 A16 (SD)/5
IPS e.max CAD LT D2 A16 (SD)/5
IPS e.max CAD LT BL2 A16 (MD)/5
IPS e.max CAD LT A1 A16 (MD)/5
IPS e.max CAD LT A2 A16 (MD)/5
IPS e.max CAD LT A3 A16 (MD)/5
IPS e.max CAD LT A3.5 A16(MD)/5
IPS e.max CAD LT B1 A16 (MD)/5
IPS e.max CAD LT B2 A16 (MD)/5
IPS e.max CAD LT C1 A16 (MD)/5
IPS e.max CAD LT C2 A16 (MD)/5
IPS e.max CAD LT D2 A16 (MD)/5
Telio CAD LT BL3 A16 (SD)/3
Telio CAD LT A1 A16 (SD)/3
Telio CAD LT A2 A16 (SD)/3
Telio CAD LT A3 A16 (SD)/3
Telio CAD LT A3.5 A16 (SD)/3
Telio CAD LT B1 A16 (SD)/3
Telio CAD LT B3 A16 (SD)/3
Telio CAD LT C2 A16 (SD)/3
Telio CAD LT D2 A16 (SD)/3
Telio CAD LT BL3 A16 (MD)/3
Telio CAD LT A1 A16 (MD)/3
Telio CAD LT A2 A16 (MD)/3
Telio CAD LT A3 A16 (MD)/3
Telio CAD LT A3.5 A16 (MD)/3
Telio CAD LT B1 A16 (MD)/3
Telio CAD LT B3 A16 (MD)/3
Telio CAD LT C2 A16 (MD)/3
Telio CAD LT D2 A16 (MD)/3
Valoraciones
No hay valoraciones aún.
